Knurled Copper Bonded Steel Grounding Rod

Saint Ni Lightning Protection Knurled Copper Bonded Steel Grounding Rod is an upgraded composite grounding solution designed for reliable underground grounding performance. Manufactured through precision copper bonding technology, the product combines the mechanical strength of steel with the electrical conductivity and corrosion resistance of copper.

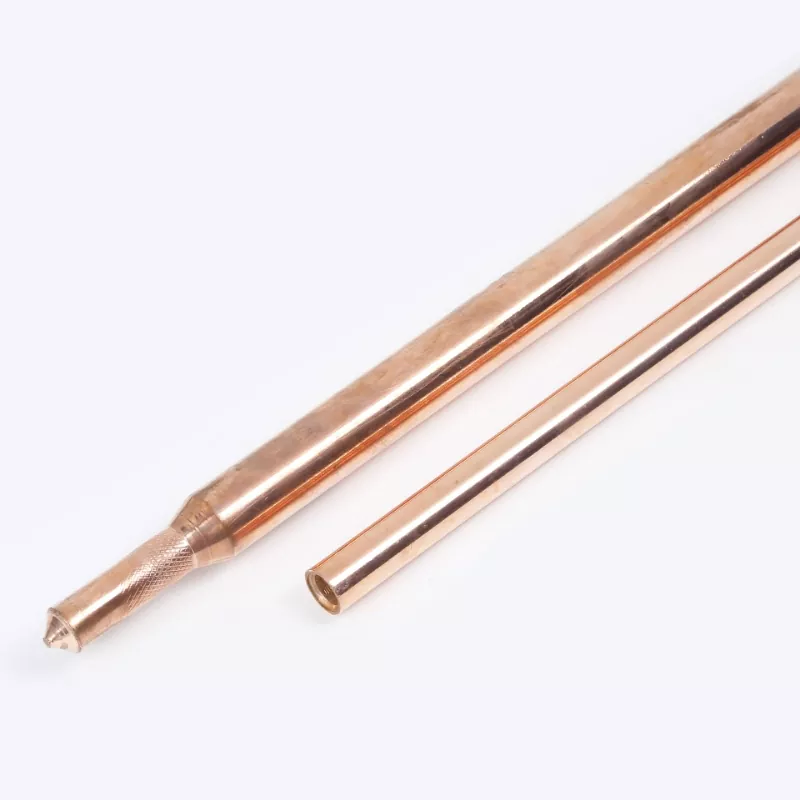

The unique tapered head, knurled surface structure, and hollow tail design allow multiple rods to be directly connected without additional connectors, reducing installation costs while improving construction efficiency. As a professional grounding material manufacturer, Saint Ni Lightning Protection provides durable grounding solutions for complex soil conditions and long-term infrastructure projects.

Common Specifications and Models

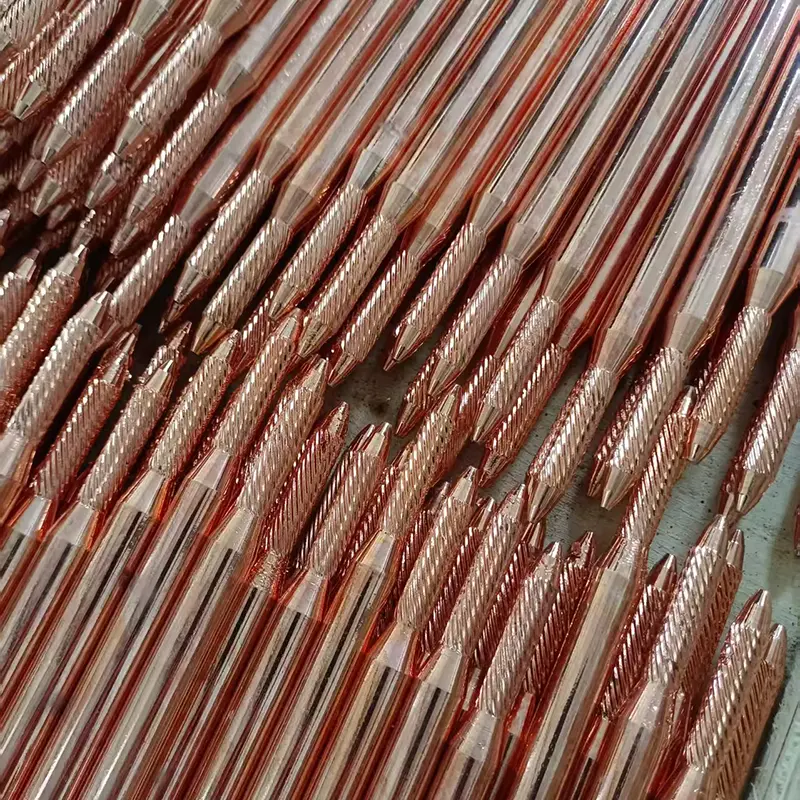

Innovative Knurled Structure for More Stable Grounding

1. Enhanced Soil Grip to Prevent Rod Movement

The three-dimensional knurled surface creates stronger interaction between the grounding rod and surrounding soil after installation. The grooves increase soil contact and provide additional mechanical locking force, helping prevent upward movement, loosening, or displacement caused by soil expansion, contraction, or external impact.

This structure allows the grounding electrode to maintain close contact with the soil, improving long-term grounding stability and reducing resistance fluctuations.

2. Connector-Free Design Improves Installation Efficiency

Unlike traditional threaded grounding rods that require additional couplers, Saint Ni Lightning Protection Knurled Copper Bonded Steel Grounding Rod adopts a tapered head and hollow tail structure for direct connection.

Multiple rods can be assembled quickly without extra accessories, reducing material costs and simplifying construction procedures. This design is especially suitable for deep grounding projects and large-scale grounding networks.

3. Improved Current Dissipation for Lightning Protection

The continuous knurled grooves help create a more uniform contact area between the grounding rod and soil. During lightning strikes or electrical faults, current can spread more evenly into the surrounding earth.

This reduces local current concentration and helps maintain stable grounding performance during high-current discharge events.

Copper Bonded Structure for Long-Term Underground Durability

1. High-Strength Steel Core for Reliable Installation

The internal steel core provides excellent mechanical strength and impact resistance, allowing the grounding rod to withstand hammering or hydraulic installation in hard soil and complex geological conditions.

The strong structure reduces bending risks during installation while maintaining reliable underground performance.

2. High-Purity Copper Layer for Conductivity and Corrosion Protection

The outer copper layer provides excellent electrical conductivity and protects the steel core from moisture, salt, acidic soil, and alkaline soil corrosion.

Through advanced copper-steel bonding technology, the copper layer remains firmly attached without peeling or separation, ensuring long-term electrical and mechanical reliability.

3. Stable Performance in Harsh Environments

The copper bonded structure enables the grounding rod to operate reliably in challenging environments such as coastal salt areas, dry regions, and industrial sites.

It provides a durable grounding solution where traditional steel grounding electrodes may experience corrosion or unstable performance.

Efficient Grounding Solution for Different Applications

1. Compatible with Grounding Enhancement Compounds

The continuous knurled grooves can effectively retain grounding enhancement compounds around the rod surface, creating a stable conductive environment between the electrode and soil.

This improves grounding performance in high-resistivity environments such as sandy soil, dry land, and rocky areas.

2. Suitable for High-Resistance Soil Conditions

By improving soil contact and supporting grounding compound retention, the product helps reduce grounding resistance in difficult geological conditions.

It is suitable for projects requiring stable low-resistance grounding performance without extensive excavation.

3. Reduced Maintenance and Long-Term Cost Benefits

The durable copper bonded structure minimizes risks such as corrosion failure, electrical contact degradation, and grounding resistance increase over time.

Once installed, the grounding system can provide long-term stable operation while reducing maintenance frequency and replacement costs.

Applications of Knurled Copper Bonded Steel Grounding Rod

1. Power and Electrical Infrastructure

The product is widely used in substations, transmission lines, distribution systems, and other power grounding projects requiring reliable electrical protection and stable grounding performance.

2. Communication and Renewable Energy Projects

It is suitable for communication towers, solar farms, wind power facilities, and data centers where long-term outdoor grounding reliability is required.

3. Industrial and Infrastructure Protection

The grounding rod is also applied in airports, railways, petrochemical facilities, and industrial plants for lightning protection and electrical safety grounding.

Engineering Application Case

1. Project Name

Fujian Coastal Wind Farm Lightning Protection and Grounding Upgrade Project

2. Project Background

This wind farm is located in a coastal saline-alkali area with high soil resistivity. It is constantly affected by salt spray corrosion and wind and rain erosion, resulting in a harsh operating environment.

The existing ordinary threaded grounding rods have the following prominent problems:

- Prone to corrosion and short lifespan;

- Loose connections and unstable contact resistance;

- Grounding rods float and shift during the rainy season;

- Grounding resistance increases significantly after lightning strikes, failing to meet safe operation requirements.

These problems seriously threaten the safe operation of wind farm equipment, necessitating a systematic grounding upgrade.

3. Solution

The project comprehensively adopts Saint Ni Lightning Protection knurled copper-clad steel grounding rods as the core grounding material. Key technical measures include:

- Employing a connector-free knurled butt welding process for rapid assembly of deep-well grounding rods and pile driving, simplifying the work process;

- Utilizing the knurled soil-locking structure to effectively fix the resistance-reducing agent, forming a stable and durable underground conductive system;

- The overall construction requires no large-scale excavation, adapting to the dispersed layout and complex terrain of wind farms.

After the upgrade, the overall grounding resistance of the wind farm is stably controlled within 1Ω, fully meeting the grounding standards of the wind power industry.

After two years of on-site operation verification, the effect remains consistently stable:

- Grounding rods show no corrosion or displacement;

- Grounding resistance shows no abnormal fluctuations;

- No on-site rectification or maintenance is required.

Economic Benefits and Construction Advantages:

- Construction cycle is shortened by 30% compared to traditional solutions;

- Subsequent operation and maintenance and material costs are reduced by 25%;

- Perfectly adapted to the complex working conditions of high corrosion and high resistance in coastal areas.

The project successfully passed the acceptance test and has been put into long-term stable operation, becoming a typical successful case of grounding transformation in harsh coastal environments.

Why Choose Saint Ni Lightning Protection Knurled Copper Bonded Steel Grounding Rod?

1. Professional Grounding Material Manufacturer

Saint Ni Lightning Protection specializes in the research, production, and customization of grounding and lightning protection materials. With advanced manufacturing equipment and strict quality control processes, Saint Ni Lightning Protection provides reliable grounding products for global engineering projects.

2. Customized Specifications and Reliable Supply

Saint Ni Lightning Protection offers different diameters, lengths, copper thickness options, and customized grounding solutions according to project requirements. The company supports contractors, distributors, and engineering companies with stable supply capability and professional service.

Product Specifications and Customization Options

1. Multiple Specifications for Different Grounding Projects

Saint Ni Lightning Protection Knurled Copper Bonded Steel Grounding Rod is available in various diameters, lengths, and copper layer thickness options to meet different grounding requirements. Whether for standard grounding systems or complex deep grounding projects, customers can select suitable specifications according to soil conditions, grounding resistance targets, and installation requirements.

The standardized product range improves compatibility with different grounding accessories and construction methods, helping contractors complete projects more efficiently.

2. Customized Solutions for Special Engineering Requirements

Different industries and regions may require customized grounding solutions due to differences in geological conditions, environmental factors, and project standards.

Saint Ni Lightning Protection provides professional customization services, including product dimensions, copper thickness, packaging, and application recommendations. By combining manufacturing experience with engineering support, Saint Ni Lightning Protection helps customers develop reliable grounding solutions for various projects.

Quality Control and Manufacturing Advantages

1. Precision Copper Bonding Process Ensures Product Reliability

Saint Ni Lightning Protection uses advanced electroplating and copper-steel bonding technology to manufacture Knurled Copper Bonded Steel Grounding Rods. The copper layer is evenly distributed and firmly bonded with the steel core, ensuring stable conductivity and mechanical strength.

Strict control is applied throughout material selection, copper bonding, knurling processing, dimensional inspection, and finished product testing to maintain consistent product quality.

2. Professional Testing for Long-Term Grounding Performance

Each product undergoes quality inspection procedures including electrical resistance testing, copper layer thickness inspection, and mechanical performance evaluation.

These tests help ensure that grounding rods maintain reliable performance after installation and meet the requirements of power, lightning protection, renewable energy, and infrastructure projects.

FAQ

1. What makes a Knurled Copper Bonded Steel Grounding Rod different from a standard grounding rod?

The main difference is the unique knurled surface structure. Compared with smooth grounding rods, the knurled design improves soil contact, increases mechanical grip, and helps maintain more stable grounding performance after installation.

It also features a connector-free structure that simplifies installation and reduces additional accessory costs.

2. Does this grounding rod require additional connectors during installation?

No. Saint Ni Lightning Protection Knurled Copper Bonded Steel Grounding Rod adopts a tapered head and hollow tail design, allowing multiple rods to connect directly without separate couplers.

This structure reduces installation steps, saves accessory costs, and improves construction efficiency, especially for deep grounding projects.

3. Is this product suitable for high-resistance soil conditions?

Yes. The knurled surface improves contact with surrounding soil, while the grooves can help retain grounding enhancement compounds around the rod.

This makes the product suitable for sandy soil, dry areas, rocky regions, and other environments where achieving low grounding resistance is challenging.

4. How long is the service life of copper bonded grounding rods?

The service life depends on soil conditions, installation environment, and maintenance requirements. Due to the corrosion-resistant copper bonded structure, Saint Ni Lightning Protection grounding rods provide long-term underground durability and can significantly outperform conventional galvanized steel grounding rods in many applications.

5. Can Saint Ni Lightning Protection provide customized grounding solutions?

Yes. Saint Ni Lightning Protection supports customized grounding solutions according to project requirements, including dimensions, copper thickness, and application recommendations.

Customers can receive professional support for selecting suitable grounding products based on soil conditions, grounding standards, and engineering needs.

Brand Strength and Supply Capability

1. Professional Manufacturer of Lightning Protection and Grounding Materials

Saint Ni Lightning Protection focuses on the research, development, manufacturing, and customization of grounding and lightning protection materials. With professional production equipment and strict quality management systems, the company provides reliable grounding products for global customers.

From raw material selection to finished product inspection, every production stage is controlled to ensure stable quality and consistent performance.

2. Reliable Supply and Engineering Support

With experience serving different grounding applications, Saint Ni Lightning Protection provides both standard products and customized solutions for power systems, communication infrastructure, renewable energy projects, and industrial applications.

By combining product reliability, manufacturing capability, and technical support, Saint Ni Lightning Protection helps customers build safer, more stable, and long-lasting grounding systems.
