Wholesale Electrolytic Grounding Rod for Superior Corrosion Resistance

Traditional grounding systems often face challenges in areas with dry soil, rocky terrain, mountains, deserts, and high-resistance geological conditions. Electrolytic Grounding Rod is specially designed to solve these difficult grounding problems by improving the conductivity around the electrode and creating a more effective current dissipation path.

Through continuous release of conductive ions, the electrode helps optimize the surrounding soil environment, reduce grounding resistance, and maintain stable grounding performance over long periods. It is widely used in projects where conventional grounding methods cannot achieve satisfactory resistance values.

Saint Ni Lightning Protection specializes in manufacturing professional lightning protection and grounding materials. With advanced production technology and strict quality control, Saint Ni Lightning Protection provides customized electrolytic grounding solutions for power systems, renewable energy projects, communication facilities, and industrial applications worldwide.

How Electrolytic Grounding Technology Works

Continuous Ion Release System

The internal electrolytic material gradually releases conductive ions into surrounding soil, improving soil conductivity and increasing the effective grounding area.

Stable Resistance Reduction Performance

Compared with conventional grounding electrodes, the system is less affected by seasonal changes, dry weather, and soil moisture fluctuations, helping maintain stable grounding resistance.

Designed for Difficult Grounding Conditions

The Electrolytic Grounding Rod is especially suitable for locations with high soil resistivity, including rocky areas, sandy soil, mountainous regions, and dry environments where standard grounding methods are difficult to apply.

Material Options and Product Configuration

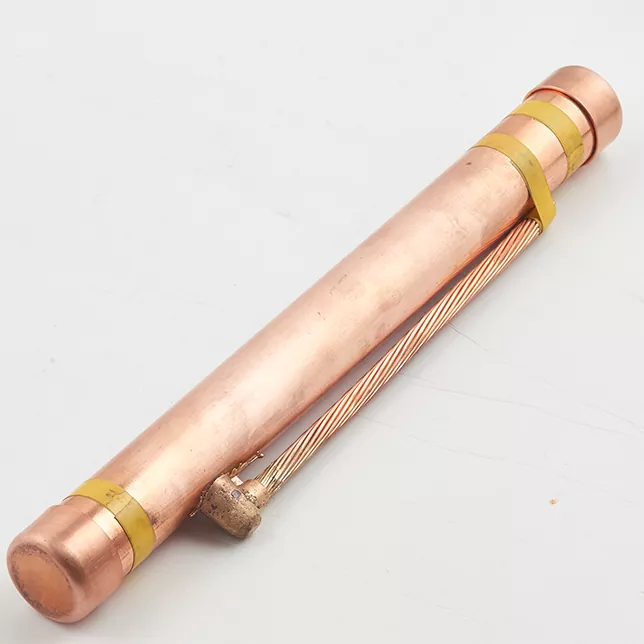

Pure Copper Type

The pure copper model provides excellent electrical conductivity and corrosion resistance, making it suitable for high-standard projects such as substations, precision facilities, and coastal engineering applications.

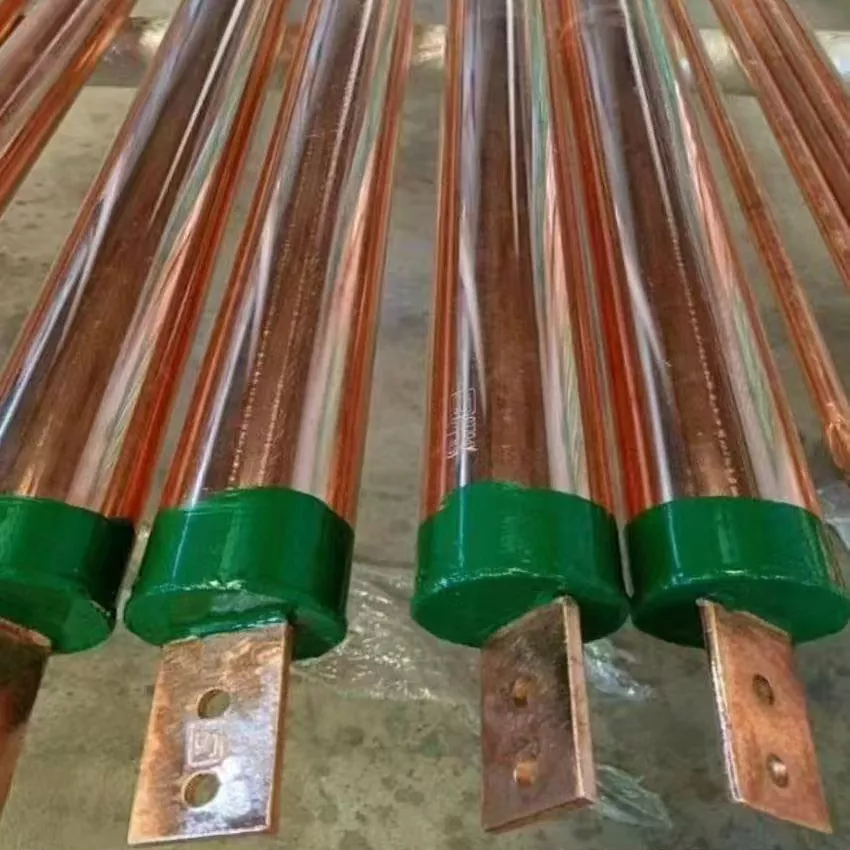

Copper Bonded Steel Type

The copper bonded steel version combines mechanical strength with good conductivity performance, offering a balanced solution for photovoltaic, wind power, and conventional electrical projects.

Stainless Steel Type

The stainless steel model provides strong corrosion resistance and durability, making it suitable for chemical plants, wastewater treatment facilities, and highly corrosive environments.

Key Performance Advantages

Active Ground Resistance Improvement

By releasing conductive ions continuously, the electrode improves the surrounding soil conditions and enhances grounding efficiency.

Long-Term Stable Grounding Effect

The internal structure is designed for long service life, maintaining reliable performance without frequent maintenance after installation.

Strong Environmental Adaptability

The product performs effectively in complex geological conditions including dry soil, gravel, rock, and high-resistance environments.

Corrosion Protection Design

The sealed structure and corrosion-resistant materials help protect internal components and ensure stable underground operation.

Engineering Applications

Power and Renewable Energy Projects

Used in substations, hydropower plants, photovoltaic power stations, wind farms, transmission systems, and other electrical infrastructure requiring reliable grounding.

Industrial and Chemical Facilities

Suitable for petroleum facilities, chemical plants, storage areas, and industrial sites where stable grounding performance is required under harsh conditions.

Communication Infrastructure

Applied in communication towers, network equipment rooms, and base stations to improve lightning protection and equipment safety.

Transportation Facilities

Used in airports, rail transit systems, and other public infrastructure projects requiring dependable grounding protection.

Professional Installation Method

Drilling Preparation

A vertical hole is drilled according to the electrode size and installation depth requirements.

Electrode Placement

The electrolytic electrode is placed vertically into the prepared hole. The rod should not be directly hammered during installation.

Backfilling and Ground Connection

Fine soil or conductive backfill material is used around the electrode and compacted properly to complete the grounding system.

Project Reference

Myanmar Taipingjiang Hydropower Plant High Voltage Grounding Retrofit Project

The project was located in a mountainous river valley area where soil consisted mainly of gravel and weathered rock. The original grounding system experienced unstable resistance values due to high soil resistivity and failed to meet high-voltage hydropower grounding requirements.

Saint Ni Lightning Protection provided an electrolytic grounding solution using multiple electrolytic electrodes combined with conductive backfill materials and professional grounding accessories. The system improved surrounding soil conductivity without requiring large-scale excavation.

After completion, the grounding resistance was significantly improved and remained stable throughout seasonal climate changes, helping enhance equipment safety and reduce maintenance costs.

Frequently Asked Questions

What materials are available for Electrolytic Grounding Rod?

Saint Ni Lightning Protection provides three material options: pure copper, copper bonded steel, and stainless steel. Customers can select suitable materials according to environment, corrosion requirements, and project budget.

Can the electrolytic grounding electrode be shortened on site?

No. Cutting may damage the sealed structure and affect the internal ion-release system. If a shorter size is required, Saint Ni Lightning Protection can provide customized production.

Is this product suitable for high-resistance soil?

Yes. It is specifically designed for difficult grounding environments such as rocky areas, dry soil, sandy regions, and locations with high soil resistivity.

Saint Ni Lightning Protection Manufacturing and Customized Grounding Solutions

Saint Ni Lightning Protection is a professional manufacturer specializing in advanced grounding materials and customized grounding solutions. With complete production capabilities and strict quality management, Saint Ni Lightning Protection provides reliable products for complex grounding engineering projects.

From material selection and structural design to production inspection, every process is controlled to ensure stable product performance. Customized dimensions, material selection, and matching accessories are available according to different project requirements.

Saint Ni Lightning Protection electrolytic grounding solutions are widely applied in substations, photovoltaic plants, communication facilities, industrial parks, server rooms, and other projects requiring stable, long-term lightning protection and grounding performance.
